LDK Lighting Technology Limited
Home > PRODUCTS > LIGHTING > Silicone LED Strip
  • YS-FA-TV-24

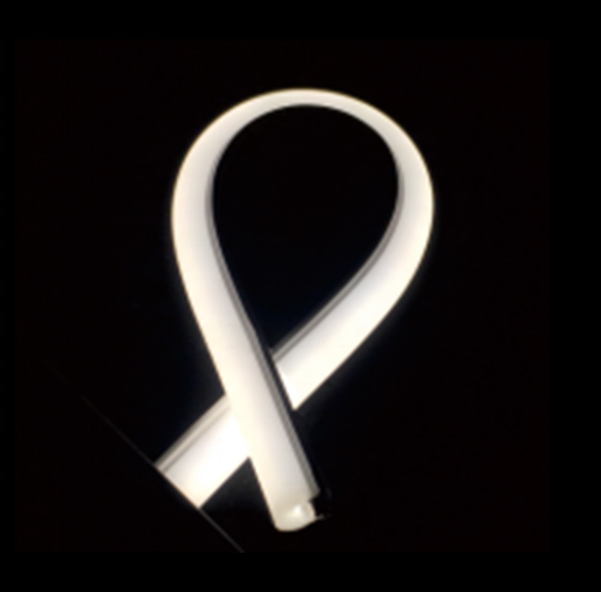

YS-FA-TV-24

SPECIFICATIONS

Notes:

TypeYS-FA-TV-24
Output Light SourceCustom made LED
 Color Temperatures 2200K,2400K,2700K.3000K,4000K,5700,6500K,8000K
LED pixel 144LEDs per meter
Beam Angle220°Diffused
 Luminous Flux400lm/M @3000K
 Lumen Maintenance L70@25°C 50,000 hours
Electrical Input Voltage24V DC
 Power Consumption24W per meter
SystemPower 24V DC low voltage
 Control ProtocolDMX / 0-10V / DALI
 Power Factor≥0.9
PhysicalDimensions Φ24mm×Max.10000mm(L)
Housing Fully opal encapsulated (silicon + UV protected)
Mounting Aluminum clips or aluminum profile
Operating Temperature-20°C to +60°C
Storage Temperature-50°C to +80°C
Humidity0% - 90%
IP ratingIP68



Ordering Logic

None

Accessories

None
