LED CONTROLLER

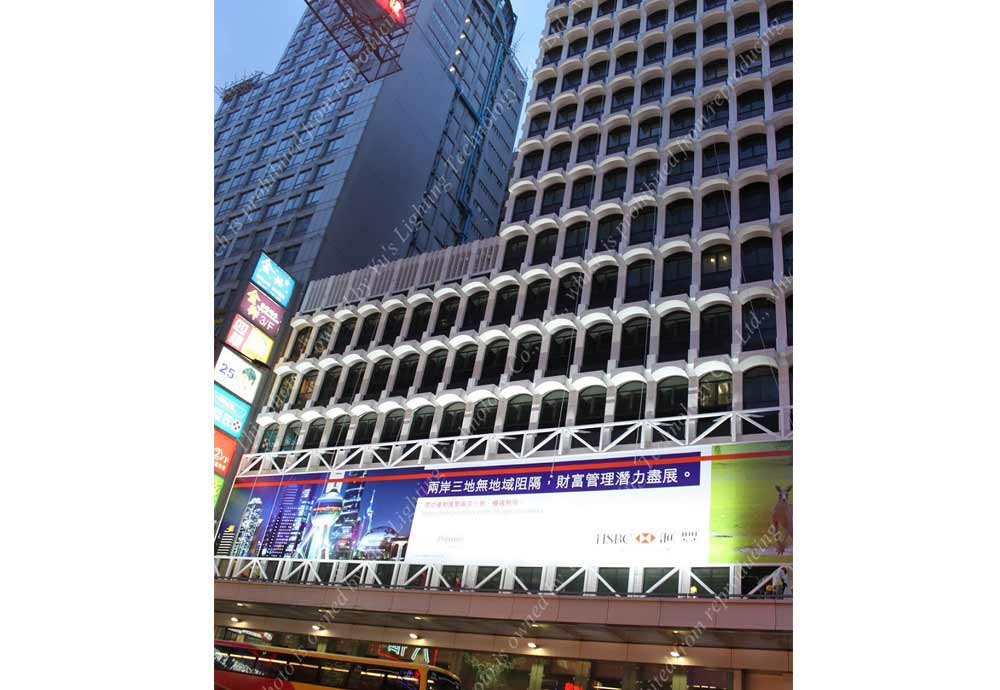

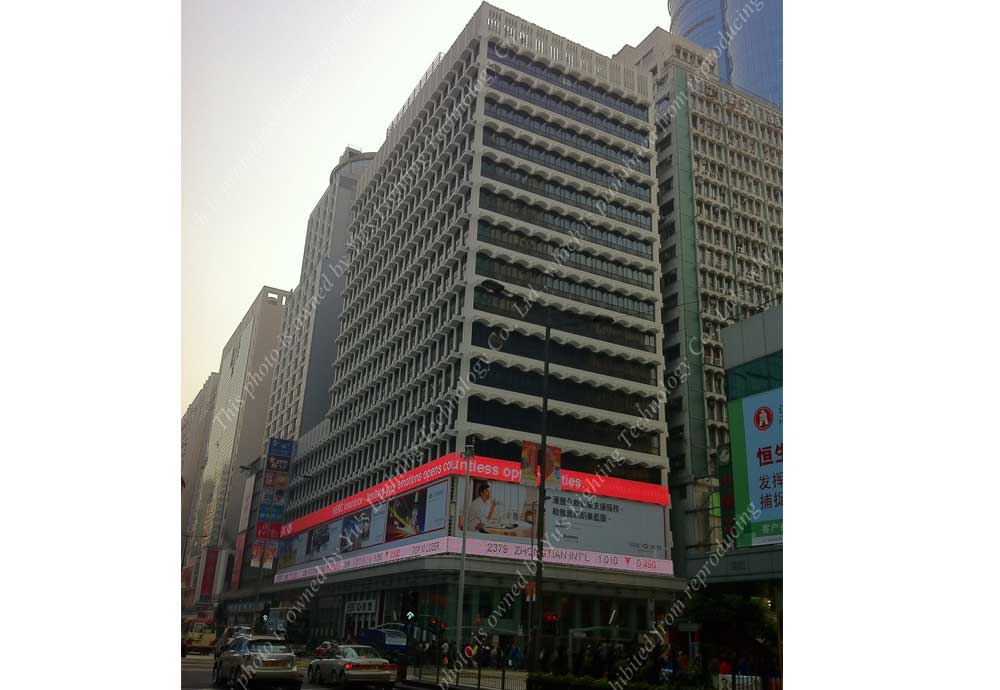

This is a very typical project in Hong Kong for see through type LED super screen. This is the headquarter of HSBC Bank in Hong Kong, the superscreen  was built to celebrate their 60th years setup. Since there is a long banner in the middle of the screen location and there are lots of limitation on the mounting structure because that this is an old building which is not easy to get the approval again to re-build their mounting flames.

We have re-measure all the dimensions of the mounting flames, the cable routing, location of installation of the power supplies/signal repeaters & the controllers.

The total size of the see through screen is 250 Meters square with 83 meters long. It has divided by the upper size and lower size. The owner would need the system to synchronous with Hong Kong Stock Exchange Union for real time stock show.

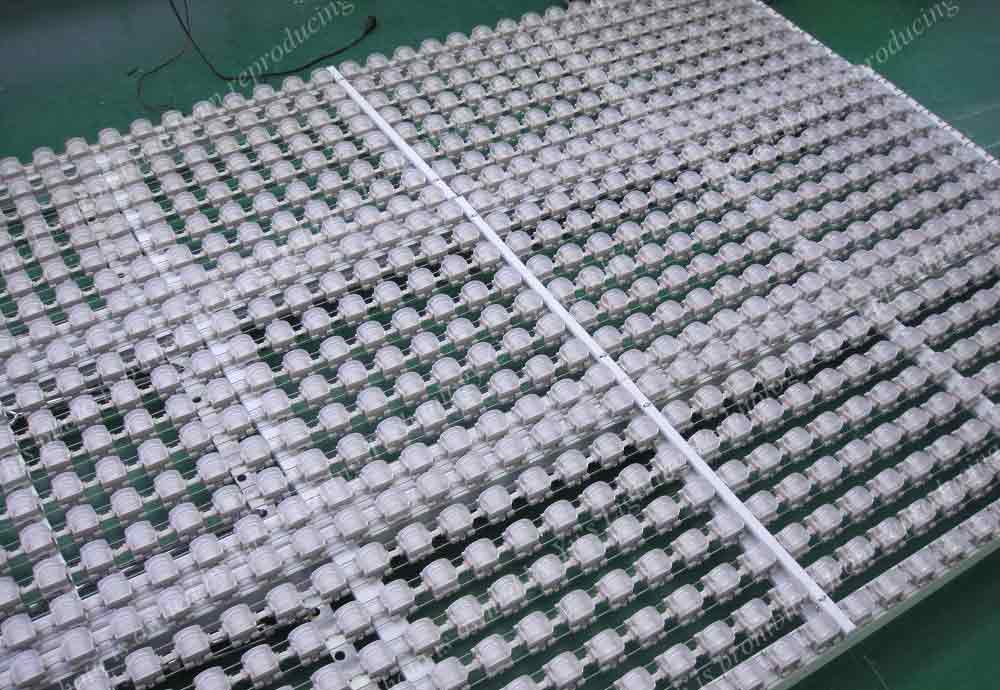

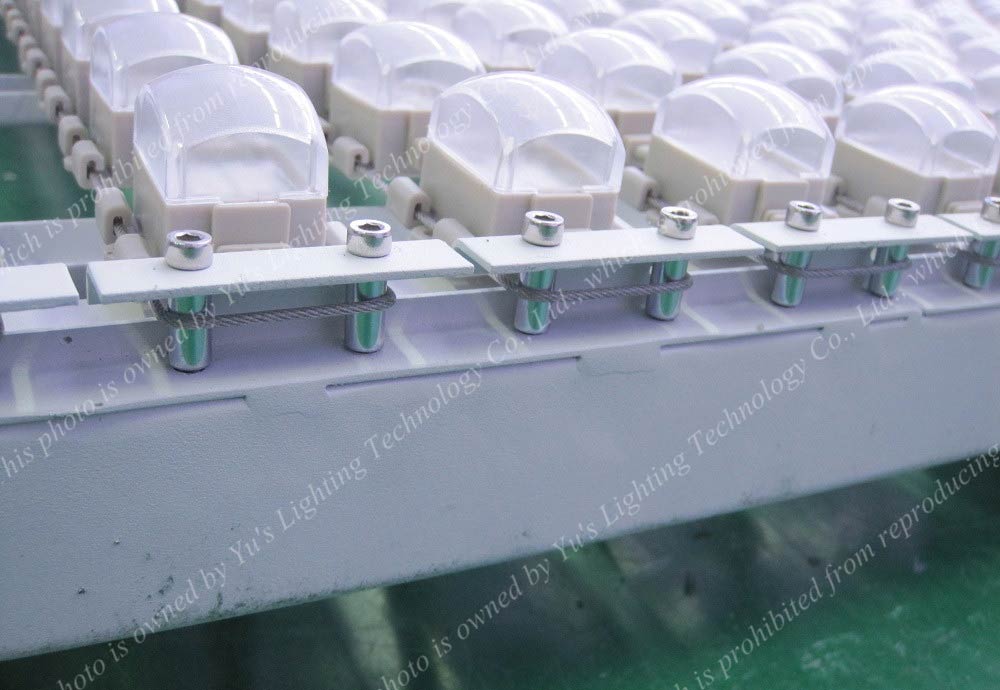

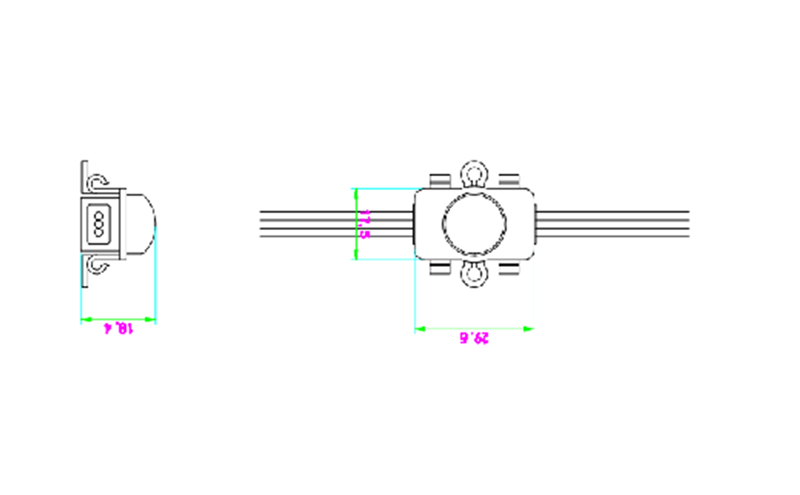

Product : 1W RGB pixel with special make mounting

Qty : 85,000pixels

Size : 250 meter square.

Project completion date:  Nov of 2010
