SPECIFICATIONS
Notes:

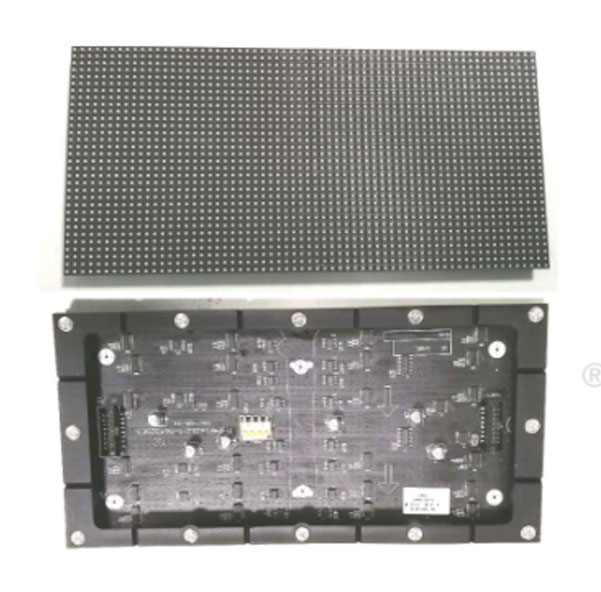

| Type | YS-P1804 |
| Pixel Spacing | 4MM |
| Dots per meter square | 62500dots/㎡ |
| LED | 3528/3030 |
| Module Size | 13(H)*128(W)*256(L)mm |
| Pixel matric per module | 64mm*32mm |
| Module weight | 0.35Kg |
| Bending Radians | Diagonally curved radians≤120°（Recommended bending radians≤90°） |
| Number of bends | <1000/次time |
| Drive Mode | 16-Bit constant current driver |
| Voltage | DC5V±10% |
| Electric Current(Max) | 5A |
| Power consumption | 25W |
| Power interface | VH4 |
| Signal interface | HUB75D(IDC16) |
| Brightness | ≥1000cd/㎡ |
| CCT | 9000±5% |
| angle of view | Horizontal right angle120° Vertical Angle120° |
| Best Vision | ≥4M |
| Grayscale | ≥16Bit |
| Brightness Chroma correction | support |
| Refresh Frequency | ≥1920HzDepending on the system |
| Range with load | Maximum height 256 points(typical value) |
| Brightness Adjustment Range | 0 to 255 |
| Lumen Maintenance | 50000hours |
| Operating Temperature | ’-50°C to + 60°C |
| Storage Temperature | ’-50°C to + 80°C |
