SPECIFICATIONS
Notes:
| Type | YS-T7273 | |
| Output | Color Temperatures | 2200K,2400K,2700K.3000K,4000K,5700K,6500K,RBG/RGBW/RGBWW |
| LED | R,G,B,WW | |
| Beam Angle | 15°/25°/45°/60° | |
| Luminous Flux | 80m/W @3000K | |
| Lumen Maintenance | L70@25°C 50,000 hours | |
| Input Voltage | 100-120VAC or 220-240VAC,50-60Hz | |
| Electrical | Power Consumption | 8W |
| Control Protocol | DMX / 0-10V / DALI | |
| system | Power Factor | ≧0.9 |

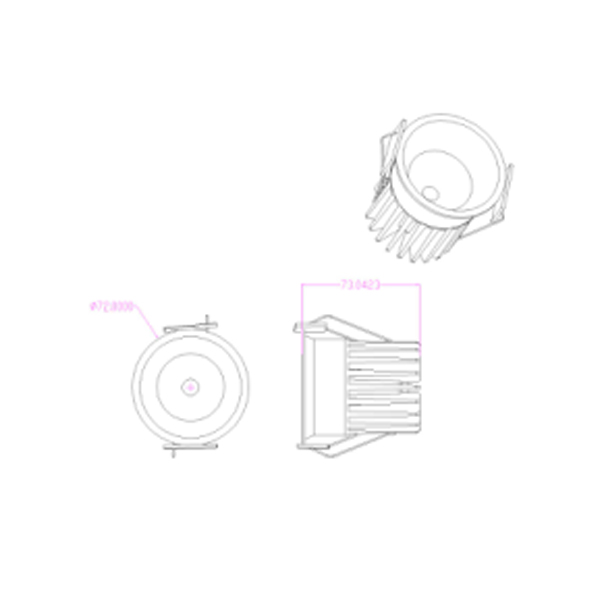

| Dimensions | ￠72mm*H73mm | |
| Material | Aluminum | |
| Physical | LED Driver | External Driver |
| Operating Temperature | -50°C to +150°C | |
| Storage Temperature | -50°C to +150°C | |
| Humidity | 0% - 90% | |
| IP rating | IP20 |
Ordering Logic
Accessories
